On the Host/Client-side, this module can accommodate multiple signal types, including 100GbE, 200GbE, 400GbE, OTUCn (n=[1.. 4]), and OTU4. At the Network Lane Interface, this module supports interfaces of 100G, 200G, 300G, and 400G, with different modulation formats. Multiple 100G clients can be multiplexed onto a single 200G, 300G, or 400G Network Lane Interface. The Network Lane Interface is a duplex LC connector coupled to an optical fiber carrying the DP-mQAM coherent signal in the C-band.

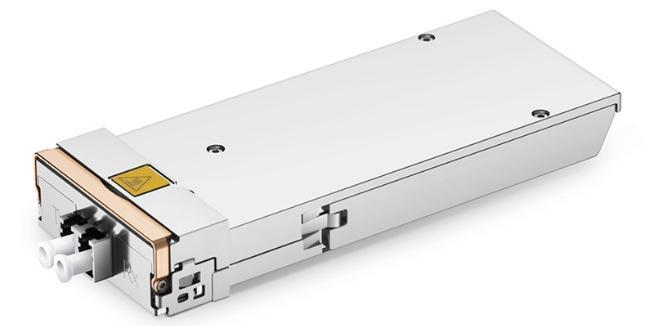

◆Hot pluggable CFP2 compatible footprint
◆Application for DP-QPSK, DP-8QAM and DP-16QAM
◆Line rate 100G/200G/300G/400G
◆Supports OTN Framer
◆Full C-band tunable with flexible grid support
◆LC-duplex receptacle optical connector
◆Single +3.3V power supply
◆MDIO Management Interface
◆RoHS 2 compliant
◆Max power consumption: 27.5W
◆Dom temperature: -5°C to 80°C
◆DCI/Metro/Long-haul DWDM
