▶ Features
◆ Hot-pluggable QSFP+ form factor
◆ Dual-fiber LC interface / Single MPO interface
◆ Compliant with QSFP MSA specification
◆ Commercial operating temperature range: 0°C ~ 70°C
◆ Supports 41.25 Gb/s data rate
◆ RoHS-6 compliant
◆ Single 3.3V power supply
◆ Equipped with DDM (Digital Diagnostic Monitoring) function
▶ Standard Parts
|
Part Number |
Data Rate |
Form Factor |
Wavelength |
Reach |
Connector Type |
Laser Type |
|
QSFP+ 40G-ZR4 |
40Gb/s |
QSFP+ |
LWDM |
80km |
LC |
DFP-APD |
|
QSFP+ 40G-LR4 |
40Gb/s |
QSFP+ |
CWDM |
10km |
LC |
DFP-PIN |
|

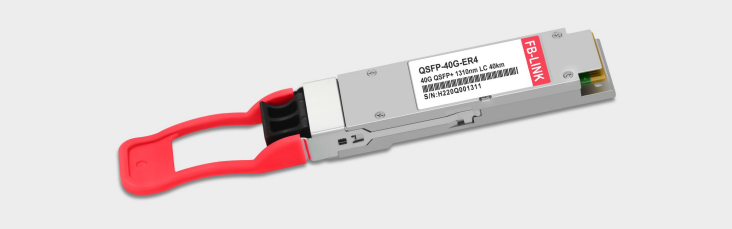

QSFP+ 40G-ER4 |
40Gb/s |
QSFP+ |
CWDM |
40km |
LC |
DFB-APD |
|
QSFP+ 40G-SR4 |
40Gb/s |
QSFP+ |
850nm |
100m |
MPO/MTP |
VCSEL-PIN |
|
QSFP+ 40G-SR4 |
40Gb/s |
QSFP+ |
850nm |
300m |
MPO/MTP |
VCSEL-PIN |
|
QSFP+ 40G-SR-BD |
40Gb/s |
QSFP+ |
850nm |
300m |
LC |
VCSEL-PIN |
|
QSFP+ 40G-PSM4 |
40Gb/s |
QSFP+ |
1310nm |
10km |
MPO |
DFP-PIN |
