▶Features
◆ Hot-pluggable QSFP28 form factor
◆ Built-in DDM (Digital Diagnostic Monitoring) function
◆ Compliant with QSFP28 MSA
◆ I2C control interface
◆ 4-channel data rate: 103.123–111.81 Gb/s
◆ 4×25G electrical interface
◆ RoHS-6 compliant
◆ Commercial operating temperature: 0°C ~ 70°C
◆ Single 3.3V power supply
◆ Industrial operating temperature: -40°C ~ 85°C
◆ Power consumption < 5W
▶ Standard Parts
Part Number | Data Rate | Form Factor | Wavelength | Reach | Connector Type | Laser Type |
QSFP28-100G-CWDM4 | 100Gb/s | QSFP28 | CWDM | 2km | LC | DFP-PIN |
QSFP28-100G-SR-BD | 100Gb/s | QSFP28 | 850nm | 150m | LC | VCSEL-PIN |
QSFP28-100G-SR4 | 100Gb/s | QSFP28 | 850nm | 100m | MPO/MTP | VCSEL-PIN |

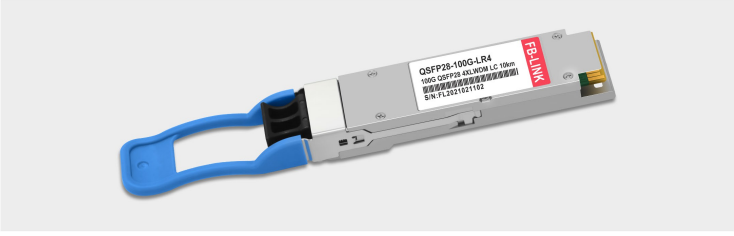

QSFP28-100G-LR4 | 100Gb/s | QSFP28 | LWDM | 10km | LC | DFP-PIN |
QSFP28-100G-ZR4 | 100Gb/s | QSFP28 | LWDM | 80km | LC | SOA-PIN |
QSFP28-100G-ER4 | 100Gb/s | QSFP28 | LWDM | 40km | LC | SOA-PIN |
QSFP28-100G-BX20-U | 100Gb/s | QSFP28 | 1310nm/1280nm | 20km | LC | DFP-PIN |
QSFP28-100G-BX20-D | 100Gb/s | QSFP28 | 1280nm/1310nm | 20km | LC | DFP-PIN |
