The 100G/200G CFP2-DCO coherent pluggable optical module is designed based on PM-QPSK or PM-16QAM, supports C-Band 191.3~196.1THz adjustable (50GHz interval), and is designed to support 100G/200Gbps single-wavelength DWDM transmission, suitable for data center 100G/200G Ethernet and OTN OTU4 metro optical transport network links.

Get a Quote

Download

View all downloads

Product Features

◆Reach beyond 1000/2000 km over SMF for 200G/100G transmission
◆Support PM-16QAM(200G), PM-DQPSK/PM-QPSK(100G) Modulation
◆Support SD-FEC
◆Support 100G/200G Flex-rate
◆OTU4/OTUC2/2*100GE/100GE Signaling Supported
◆Compliant CEI-28G-MR Specifications
◆Compliant OTL4.4/OTLC2/CAUI-4 Signaling

Applications

◆Metro DCI interconnection
◆DWDM long-distance transmission
◆Hot-Pluggable
◆CFP2 MSA Hardware Specification Rev. 1.0
◆ OIF-CFP2-DCO-01.0
◆CFP MSA Management Interface Specification Version 2.6 (R06a)
◆Line & Client PRBS Generator and Checker
◆Line loopback, host terminal/facility loopback
◆Power consumption 26W(200G)/21W(100G)

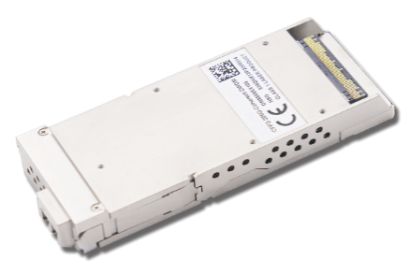

2000km 100G / 1000km 200G Coherent CFP2-DCO Optical Transceiver
