Compatible Part Number |

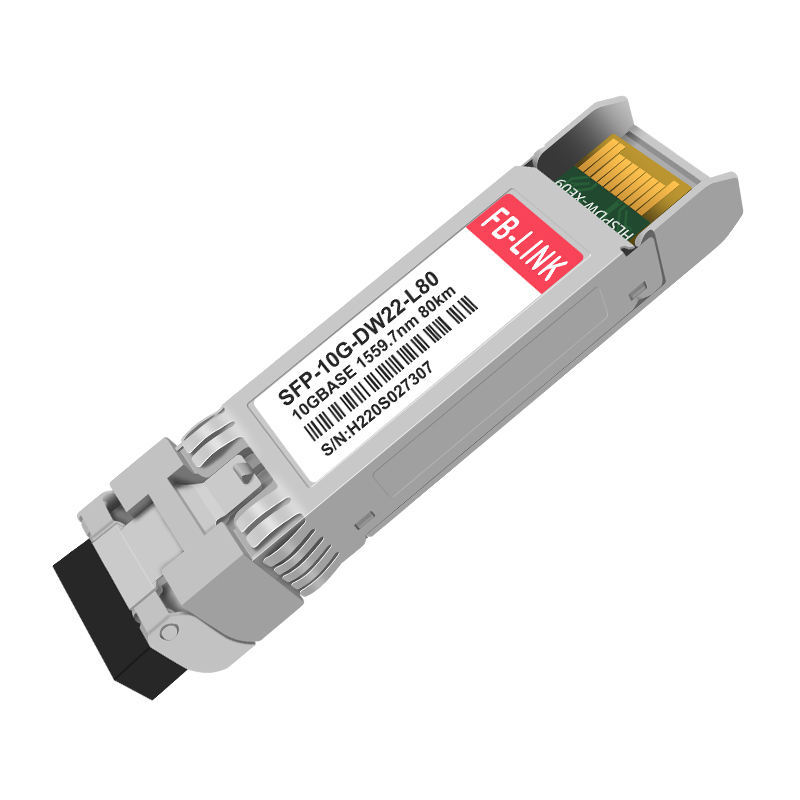

SFP-10G-DW22-L80 |
Brand |
FB-LINK |
Form Factor |
SFP+ |
Data Rate |
10Gb/s |
Wavelength |
1559.7nm |
Max Transmission Reach |
80km |
Connector |
Duplex LC |
Fiber Type |
Single Mode |
Laser Type |
EML DWDM |
Transmit Optical Power |
1 ~ 5 dBm |
Receiver Sensitivity |
< -23 dBm |
Power Consumption |
< 1.6W |
Digital Diagnostic Monitoring (DDM) |
Supported |
Extinction Ratio |
> 8.2 dB |
Operating Temperature |
0 ~ 70°C |
Features
◆ Equipped with Semtech chip, max power consumption < 1.6W
◆ Hot-pluggable SFP+ form factor for Ethernet SFP+ ports
◆ DWDM multiplexing over duplex fiber for multi-scenario applications
◆ Compliant with SFP+ MSA hot-plug specifications
◆ Built-in DDM digital optical monitoring with comprehensive diagnostic functions
◆ Optical interoperable with 10GBASE XFP transceivers on the same link
◆ Meets IEEE 802.3ae and RoHS standards
◆ Fully tested on target switches to guarantee excellent performance, quality and reliability
