Compatible Part Number |
FBL-QSFP-40G-LR4 |
Brand |
FB-LINK |
Form Factor |
QSFP+ |
Data Rate |
40Gb/s |
Wavelength |
1310nm |
Max Transmission Reach |
10km |
Connector |
Duplex LC |
Fiber Type |
Single Mode |
Application |
Data Center, Switch Interconnection |
Transmit Optical Power |
-7 ~ 2.3 dBm |
Receiver Sensitivity |
< -11 dBm |
Power Consumption |
≤ 3.5W |
Digital Diagnostic Monitoring (DDM) |
Supported |
Receiver Type |
PIN |
Operating Temperature |
0 ~ 70°C |
Product Features
◆ Hot-swappable QSFP+ form factor
◆ Supports a total bit rate of 41.25 Gb/s
◆ Power dissipation <3.5 W
◆Commercial operating temperature range: 0°C to 70°C
◆Single 3.3 V power supply
◆ Maximum link length of 10 km over single-mode fiber (SMF)
◆ Compliant with the IEEE 802.ba standard
◆4x10G NRZ DFB-based 1310 nm transmitter
◆ 4x10G NRZ retimed 40GAUI-4 electrical interface

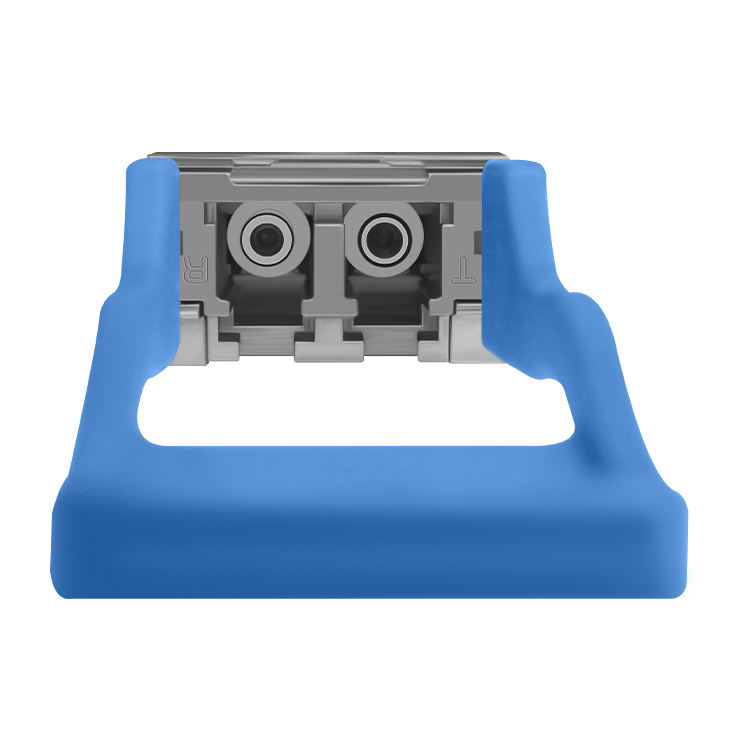

◆ Duplex LC connector
◆ I2C management interface
◆ RoHS compliant
