Product Specifications
Compatible Part Number |
FBL-QSFP-SR4 |
Brand |
FB-LINK |
Form Factor |
QSFP+ |
Data Rate |
40Gb/s |
Wavelength |
850nm |
Max. Transmission Distance |
300m |
Connector |
MPO/MTP |
Fiber Type |
Multimode Fiber |
Application Scenarios |
Data Center, Switch Interconnection |
Transmit Optical Power |
-7.6~2.4dBm |
Receiver Sensitivity |
<-11.1dBm |
Power Consumption |
1.5W |
Digital Diagnostic Monitoring |
Supported |
Operating Temperature |
0~70℃ |
— |
— |
Features
◆ Hot-swappable QSFP+ form factor
◆Supports a total bit rate of 41.25 Gb/s
◆Power dissipation <1.5 W
◆ Commercial operating temperature range: 0°C to 70°C
◆ Single 3.3 V power supply
◆ Maximum link length of 300 meters over multimode fiber (MMF)
◆Compliant with the IEEE 802.ba standard
◆ VCSEL-based 4x10G NRZ 850nm transmitter
◆ 40GAUI-4 electrical interface with 4x10G NRZ retiming

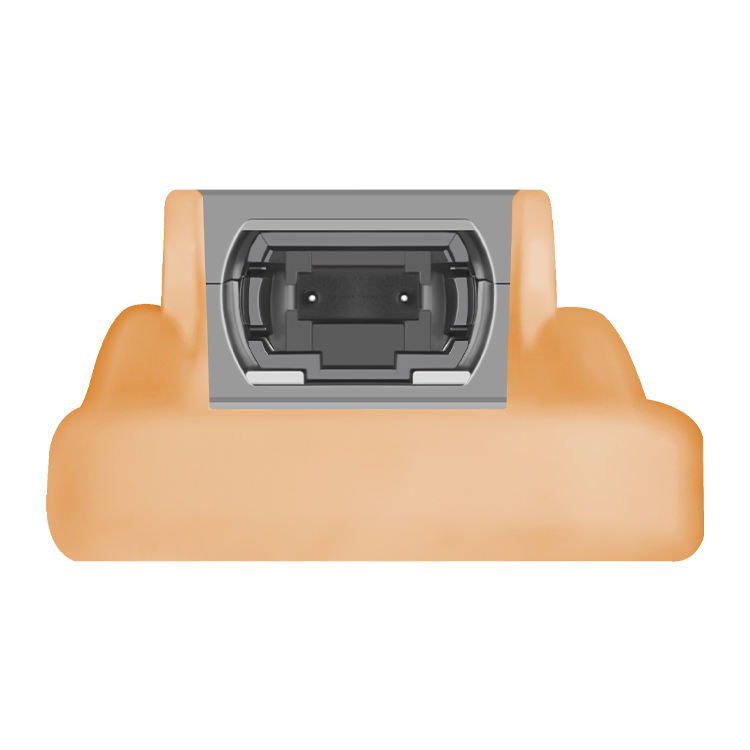

◆ MPO-12 connector
◆ I²C management interface
◆ RoHS compliant
