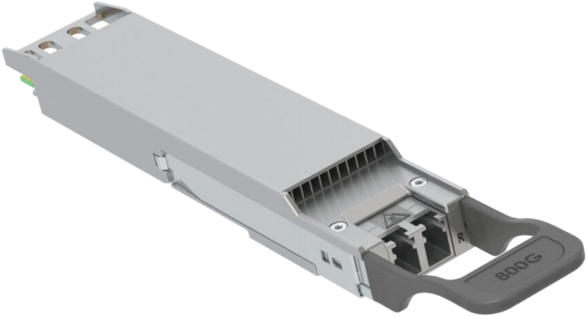

800G OSFP DCO is a coherent pluggable optical module thatcompliant to the OSFP Hardware Specification.It is based on Modem Probabilistic Constellation Shaping (MPCS) DP-QPSK to DP-16QAM modulation, polarization diversity coherent Intradyne detection and advanced electronic link equalization.The pluggable optical module contains a PCB with a 60-contact card-edge electrical interface to external Host/Client-side logic. On the Host/Client side, this module is capable of supporting multiple signal types, such as 100GbE, 200GbE, 400GbE, and 800GbE. It allows for the multiplexing of multiple 100G, 200G, and 400G clients onto a single 800G Network Lane Interface. The Network Lane Interface employs a duplex LC connector connected to an optical fiber, which transmits the DP-QPSK or DP-16QAM coherent signal within the C-band.
◆DCI/Metro/Long-haul DWDM
|
Parameter |
Min |
Typ. |
Max |
Unit |
Condition/comments |
|
Transmitter |
|||||
|
Transmitter frequency range |
191.25 |
|
196.10 |
THz |
@6.25G grid |
|
Transmitter laser frequency stability |
-1.5 |
|
1.5 |
GHz |
|
|
Tx power |
1 |
1.5 |
|
dBm |
|
|
Range of provisional TX power |
10 |
|
|
dB |
Reduction below maximum provisionable Tx power |
|
Output power stability (standard range) |
-0.5 |
|
0.5 |
dB |
|
|
Output power reported accuracy |
-1 |
|
1 |
dB |
|
|
Baud Rate |
|
131.3 |
|
Gbaud |
800G_FlexO-8e-MPCS131-NOS-E |
|
|
131.3 |
|
Gbaud |
800G_FlexO-8e-MPCS131-NOS-OR |
|
|
|
131.2 |
|
Gbaud |
600G_FlexO-6e-MPCS131-NOS-E |
|
|
|
131.3 |
|
Gbaud |
400G_FlexO-4e-MPCS131-NOS |
|
|
|
65.7 |
|
Gbaud |
400G_FlexO-4e-MPCS066-OS |
|
|
|
75.0 |
|
Gbaud |
400G_FlexO-4e-MPCS075-OS |
|
|
|
87.4 |
|
Gbaud |
400G_FlexO-4e-MPCS087-OS |
|
|
|
108.5 |
|
Gbaud |
400G_FlexO-4e-MPCS108-OS |
|
|
Channel spacing |
150 |
|
|
GHz |
800G_FlexO-8e-MPCS131-NOS-E |
|
150 |
|
|
GHz |
800G_FlexO-8e-MPCS131-NOS-OR |
|
|
150 |
|
|
GHz |
600G_FlexO-6e-MPCS131-NOS-E |
|
|
150 |
|
|
GHz |
400G_FlexO-4e-MPCS131-NOS |
|
|
75 |
|
|
GHz |
400G_FlexO-4e-MPCS066-OS |
|
|
87.5 |
|
|
GHz |
400G_FlexO-4e-MPCS075-OS |
|
|
100 |
|
|
GHz |
400G_FlexO-4e-MPCS087-OS |
|
|
125 |
|
|
GHz |
400G_FlexO-4e-MPCS108-OS |
|
|
Receiver |
|||||
|
Receiver frequency range |
191.275 |
|
196.125 |
THz |
|
|
Receiver sensitivity High OSNR (ROSNR > 36dB) |
-20.5 |
|
0 |
dBm |
800G_FlexO-8e-MPCS131-NOS-E |
|
-20.5 |
|
0 |
dBm |
800G_FlexO-8e-MPCS131-NOS-OR |
|
|
-24 |
|
0 |
dBm |
600G_FlexO-6e-MPCS131-NOS-E |
|
|
-27 |
|
0 |
dBm |
400G_FlexO-4e-MPCS131-NOS |
|
|
-24.5 |
|
0 |
dBm |
400G_FlexO-4e-MPCS066-OS |
|
|
-24 |
|
0 |
dBm |
400G_FlexO-4e-MPCS075-OS |
|
|
-26 |
|
0 |
dBm |
400G_FlexO-4e-MPCS087-OS |
|
|
-26.5 |
|
0 |
dBm |
400G_FlexO-4e-MPCS108-OS |
|
|
Optimum Input power range |
-9 |
|
0 |
dBm |
800G_FlexO-8e-MPCS131-NOS-E |
|
-9 |
|
0 |
dBm |
800G_FlexO-8e-MPCS131-NOS-OR |
|
|
-9 |
|
0 |
dBm |
600G_FlexO-6e-MPCS131-NOS-E |
|
|
-12 |
|
0 |
dBm |
400G_FlexO-4e-MPCS131-NOS |
|
|
-12 |
|
0 |
dBm |
400G_FlexO-4e-MPCS066-OS |
|
|
-12 |
|
0 |
dBm |
400G_FlexO-4e-MPCS075-OS |
|
|
-12 |
|
0 |
dBm |
400G_FlexO-4e-MPCS087-OS |
|
|
-12 |
|
0 |
dBm |
400G_FlexO-4e-MPCS108-OS |
|
|
OSNR tolerance (Optimum Input power range) |
23.2 |
|
24.7 |
dB |
800G_FlexO-8e-MPCS131-NOS-E |
|
23.9 |
|
25.4 |
dB |
800G_FlexO-8e-MPCS131-NOS-OR |
|
|
19.8 |
|
21.3 |
dB |
600G_FlexO-6e-MPCS131-NOS-E |
|
|
16.5 |
|
18 |
dB |
400G_FlexO-4e-MPCS131-NOS |
|
|
19.7 |
|
21.2 |
dB |
400G_FlexO-4e-MPCS066-OS |
|
|
19.1 |
|
20.6 |
dB |
400G_FlexO-4e-MPCS075-OS |
|
|
18 |
|
19.5 |
dB |
400G_FlexO-4e-MPCS087-OS |
|
|
17.2 |
|
18.7 |
dB |
400G_FlexO-4e-MPCS108-OS |
|
|
CD tolerance (with less than 0.5dB OSNR penalty) |
|
|
24000 |
ps/nm |
800G_FlexO-8e-MPCS131-NOS-E |
|
|
|
24000 |
ps/nm |
800G_FlexO-8e-MPCS131-NOS-OR |
|
|
|
|
24000 |
ps/nm |
600G_FlexO-6e-MPCS131-NOS-E |
|
|
|
|
24000 |
ps/nm |
400G_FlexO-4e-MPCS131-NOS |
|
|
|
|
75000 |
ps/nm |
400G_FlexO-4e-MPCS066-OS |
|
|
|
|
66000 |
ps/nm |
400G_FlexO-4e-MPCS075-OS |
|
|
|
|
47000 |
ps/nm |
400G_FlexO-4e-MPCS087-OS |
|
|
|
|
29000 |
ps/nm |
400G_FlexO-4e-MPCS108-OS |
|
|
Tolerance to change in SOP (with less than 0.5dB OSNR penalty) |
|
175 |
|
krad/s |
800G_FlexO-8e-MPCS131-NOS-E |
|
|
200 |
|
krad/s |
800G_FlexO-8e-MPCS131-NOS-OR |
|
|
|
225 |
|
krad/s |
600G_FlexO-6e-MPCS131-NOS-E |
|
|
|
375 |
|
krad/s |
400G_FlexO-4e-MPCS131-NOS |
|
|
|
100 |
|
krad/s |
400G_FlexO-4e-MPCS066-OS |
|
|
|
125 |
|
krad/s |
400G_FlexO-4e-MPCS075-OS |
|
|
|
275 |
|
krad/s |
400G_FlexO-4e-MPCS087-OS |
|
|
|
325 |
|
krad/s |
400G_FlexO-4e-MPCS108-OS |
|
