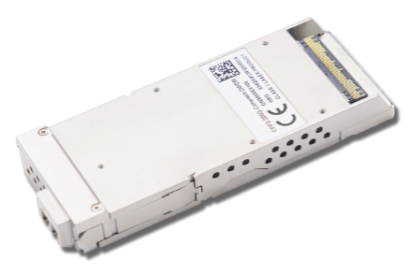

The 100G/200G CFP2-DCO coherent pluggable optical module is designed based on PM-QPSK or PM-16QAM, supports C-Band 191.3~196.1THz adjustable (50GHz interval), and is designed to support 100G/200Gbps single-wavelength DWDM transmission, suitable for data center 100G/200G Ethernet and OTN OTU4 metro optical transport network links.
◆Metro DCI interconnection
◆DWDM long-distance transmission
◆Hot-Pluggable
◆CFP2 MSA Hardware Specification Rev. 1.0
◆ OIF-CFP2-DCO-01.0
◆CFP MSA Management Interface Specification Version 2.6 (R06a)
◆Line & Client PRBS Generator and Checker
◆Line loopback, host terminal/facility loopback
◆Power consumption 26W(200G)/21W(100G)
|
Parameter |
Min |
Typ. |
Max |
Unit |
Condition/comments |
|
Transmitter |
|||||
|
Transmitter frequency range |
191.3 |
|
196.1 |
THz |
ITU-T 50GHz grid |
|
Transmitter laser fre-quency stability |
-1.5 |
|
1.5 |
GHz |
|
|
Transmitter output power range |
-10 |
|
1 |
dBm |
Default 0.5dBm |
|
Output power stability (standard range) |
-0.3 |
|
0.3 |
dB |
|
|
Output power accuracy and stability(standard range) |
-1 |
|
1 |
dB |
|
|
Transmitter laser disable time |
- |
|
10 |
ms |
|
|
Transmitter wavelength switching time |
- |
|
60 |
s |
|
|
Transmitter turn-up time from cold start |
|
60 |
120 |
s |
|
|
Transmitter OSNR |
35 |
|
|
dB/0.1nm |
OSNR at Transmitter output (in-band) |
|
Transmitter output power with TX disabled |
|
|
-35 |
dBm |
E.g., ma x output power when chang-ing laser frequency. |
|
Receiver |
|||||
|
Receiver frequency range |
191.3 |
|
196.1 |
THz |
|
|
Optimum Input power range |
-14 |
|
0 |
dBm |
Signal power of the selected channel. The input power range gets optimum OSNR performance |
|
Extended Input power range |
-18 |
|
0 |
dBm |
@0.5dB OSNR penalty |
|
OSNR tolerance(BOL) |
|
10.6 |
11 |
dB/0.1nm |
100G PM-QPSK |
|
|
12.3 |
12.8 |
100G PM-DQPSK |
||
|
|
16.2 |
16.7 |
200G PM-16QAM |
||
|
CD tolerance |
-10000 |
|
100000 |
ps/nm |
100G PM-DQPSK/QPSK with less than 0.5dB OSNR penalty |
|
-10000 |
|
40000 |
200G PM-16QAM with less than 0.5dB OSNR penalty |
||
|
PMD tolerance |
30 |
|
|
ps |
100G PM-QPSK/ DQPSK |
|
25 |
|
|
200G 16QAM |
||
|
PDL tolerance |
6 |
|
|
dB |
|
|
Optical input power transient tolerance |
6 |
|
|
dB |
|
|
Tolerance to change in SOP |
1000 |
|
- |
rad/ms |
100G PM-QPSK/ DQPSK |
|
628 |
|
|
200G 16QAM |
||
|
Dispersion reading accuracy |
-150 |
|
150 |
ps/nm |
|
|
DGD reading accuracy |
-10 |
|
10 |
ps |
|
|
Multiple optical stress OSNR penalty |
|
|
1.5 |
dB |
|
|
Input power reading accuracy |
-1.5 |
|
1.5 |
dB |
within the range of 0 to -18 dBm |
|
Input power reading accuracy |
-2.5 |
|
2.5 |
dB |
within the range of -18 to -25 dBm |
|
Optical return loss |
27 |
|
|
dB |
|
|
Receiver damage threshold |
|
|
14 |
dBm |
|
