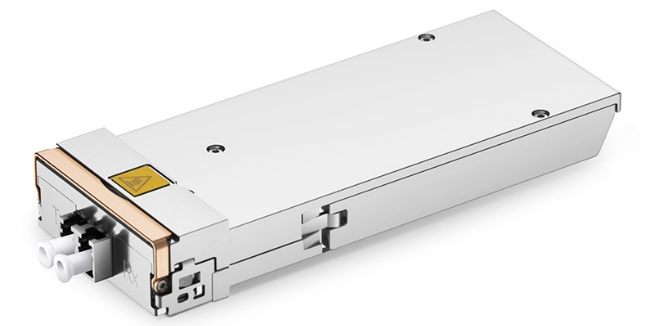

400G CFP2 DCO is a coherent pluggable optical module that complies with the CFP MSA CFP2 hardware specification. It is based on and DP-mQAM modulation, polarization diversity coherent internal detection, and advanced electronic link equalization technology.
On the Host/Client-side, this module can accommodate multiple signal types, including 100GbE, 200GbE, 400GbE, OTUCn (n=[1.. 4]), and OTU4. At the Network Lane Interface, this module supports interfaces of 100G, 200G, 300G, and 400G, with different modulation formats. Multiple 100G clients can be multiplexed onto a single 200G, 300G, or 400G Network Lane Interface. The Network Lane Interface is a duplex LC connector coupled to an optical fiber carrying the DP-mQAM coherent signal in the C-band.
◆DCI/Metro/Long-haul DWDM
|
Parameter |
Min |
Typ. |
Max |
Unit |
Condition/comments |
|
Transmitter |
|||||
|
Transmitter frequency range |
191.275 |
|
196.125 |
THz |
@6.25G grid |
|
Transmitter laser frequency stability |
-1.5 |
|
1.5 |
GHz |
|
|
Maximum transmit power |
3 |
|
|
dBm |
|
|
Range of provisionable transmit power |
11 |
|
|
dB |
Reduction below maximum provisionable Maximum transmit power |
|
Output power stability (standard range) |
-0.5 |
|
0.5 |
dB |
|
|
Output power reported accuracy |
-1 |
|
1 |
dB |
|
|
Transmitter wavelength switching time |
|
|
86 |
s |
channel-to-channel |
|
|
|
200 |
s |
Fine tuning |
|
|
Transmitter turn-up time from cold start |
|
|
116 |
s |
|
|
Transmitter output power with TX disabled |
|
|
-40 |
dBm |
|
|
Inband (IB) OSNR |
38 |
|
|
dB/0.1nm |
|
|
Out-of-band (OOB) OSNR |
34 |
|
|
dB/0.1nm |
|
|
Transmitter polarization dependent power |
|
|
1.5 |
dB |
Power difference between X and Y polarization. |
|
Receiver |
|||||
|
Receiver frequency range |
191.275 |
|
196.125 |
THz |
|
|
Receiver sensitivity High OSNR (ROSNR > 36dB) |
-20 |
|
0 |
dBm |
400G-FOIC4-OFEC-16QAM |
|
-21 |
|
0 |
dBm |
400G 400ZR-OFEC-16QAM |
|
|
-23 |
|
0 |
dBm |
300G-FOIC3-OFEC-8QAM |
|
|
-23 |
|
0 |
dBm |
300G 300ZR-OFEC-8QAM |
|
|
-28 |
|
0 |
dBm |
200G-FOIC2-OFEC-QPSK |
|
|
-28 |
|
0 |
dBm |
200G-FOIC2-OFEC-8QAM |
|
|
-23 |
|
0 |
dBm |
200G-FOIC2-OFEC-16QAM |
|
|
-29 |
|
0 |
dBm |
200G 200ZR-OFEC-QPSK |
|
|
-28 |
|
0 |
dBm |
200G 200ZR-OFEC-8QAM |
|
|
-24 |
|
0 |
dBm |
200G 200ZR-OFEC-16QAM |
|
|
-32 |
|
0 |
dBm |
100G FOIC1-OFEC-QPSK |
|
|
-32 |
|
0 |
dBm |
100G 100ZR-OFEC-QPSK |
|
|
Optimum Input power range |
-14 |
|
0 |
dBm |
400G-FOIC4-OFEC-16QAM |
|
-12 |
|
0 |
dBm |
400G 400ZR-OFEC-16QAM |
|
|
-10 |
|
0 |
dBm |
300G-FOIC3-OFEC-8QAM |
|
|
-15 |
|
0 |
dBm |
300G 300ZR-OFEC-8QAM |
|
|
-10 |
|
0 |
dBm |
200G-FOIC2-OFEC-QPSK |
|
|
-16 |
|
0 |
dBm |
200G-FOIC2-OFEC-8QAM |
|
|
-15 |
|
0 |
dBm |
200G-FOIC2-OFEC-16QAM |
|
|
-18 |
|
0 |
dBm |
200G 200ZR-OFEC-QPSK |
|
|
-16 |
|
0 |
dBm |
200G 200ZR-OFEC-8QAM |
|
|
-15 |
|
0 |
dBm |
200G 200ZR-OFEC-16QAM |
|
|
-20 |
|
0 |
dBm |
100G FOIC1-OFEC-QPSK |
|
|
-20 |
|
0 |
dBm |
100G 100ZR-OFEC-QPSK |
|
|
OSNR tolerance (Optimum Input power range) |
23.5 |
|
|
dB |
400G-FOIC4-OFEC-16QAM |
|
23.1 |
|
|
dB |
400G 400ZR-OFEC-16QAM |
|
|
20.5 |
|
|
dB |
300G-FOIC3-OFEC-8QAM |
|
|
19.5 |
|
|
dB |
300G 300ZR-OFEC-8QAM |
|
|
15.2 |
|
|
dB |
200G-FOIC2-OFEC-QPSK |
|
|
17.5 |
|
|
dB |
200G-FOIC2-OFEC-8QAM |
|
|
20 |
|
|
dB |
200G-FOIC2-OFEC-16QAM |
|
|
14.8 |
|
|
dB |
200G 200ZR-OFEC-QPSK |
|
|
17.2 |
|
|
dB |
200G 200ZR-OFEC-8QAM |
|
|
19.3 |
|
|
dB |
200G 200ZR-OFEC-16QAM |
|
|
11.8 |
|
|
dB |
100G FOIC1-OFEC-QPSK |
|
|
11.5 |
|
|
dB |
100G 100ZR-OFEC-QPSK |
|
|
CD tolerance (with less than 0.5dB OSNR penalty) |
|
|
24000 |
ps/nm |
400G-FOIC4-OFEC-16QAM |
|
|
|
26000 |
ps/nm |
400G 400ZR-OFEC-16QAM |
|
|
|
|
48000 |
ps/nm |
300G-FOIC3-OFEC-8QAM |
|
|
|
|
50000 |
ps/nm |
300G 300ZR-OFEC-8QAM |
|
|
|
|
48000 |
ps/nm |
200G-FOIC2-OFEC-QPSK |
|
|
|
|
48000 |
ps/nm |
200G-FOIC2-OFEC-8QAM |
|
|
|
|
25000 |
ps/nm |
200G-FOIC2-OFEC-16QAM |
|
|
|
|
50000 |
ps/nm |
200G 200ZR-OFEC-QPSK |
|
|
|
|
50000 |
ps/nm |
200G 200ZR-OFEC-8QAM |
|
|
|
|
30000 |
ps/nm |
200G 200ZR-OFEC-16QAM |
|
|
|
|
77000 |
ps/nm |
100G FOIC1-OFEC-QPSK |
|
|
|
|
80000 |
ps/nm |
100G 100ZR-OFEC-QPSK |
|
|
Tolerance to change in SOP (with less than 0.5dB OSNR penalty) |
80 |
|
|
krad/s |
400G-FOIC4-OFEC-16QAM |
|
80 |
|
|
krad/s |
400G 400ZR-OFEC-16QAM |
|
|
120 |
|
|
krad/s |
300G-FOIC3-OFEC-8QAM |
|
|
100 |
|
|
krad/s |
300G 300ZR-OFEC-8QAM |
|
|
800 |
|
|
krad/s |
200G-FOIC2-OFEC-QPSK |
|
|
70 |
|
|
krad/s |
200G-FOIC2-OFEC-8QAM |
|
|
50 |
|
|
krad/s |
200G-FOIC2-OFEC-16QAM |
|
|
800 |
|
|
krad/s |
200G 200ZR-OFEC-QPSK |
|
|
70 |
|
|
krad/s |
200G 200ZR-OFEC-8QAM |
|
|
50 |
|
|
krad/s |
200G 200ZR-OFEC-16QAM |
|
|
400 |
|
|
krad/s |
100G FOIC1-OFEC-QPSK |
|
|
400 |
|
|
krad/s |
100G 100ZR-OFEC-QPSK |
|
|
PDL tolerance (Optimum Input power range) |
|
|
3 |
dB |
|
|
Dispersion reading accuracy |
-100 |
|
100 |
ps/nm |
|
|
DGD reading accuracy |
-10 |
|
10 |
ps |
|
|
Input power reading accuracy |
-1.8 |
|
1.8 |
dB |
Between -25dBm to +4dBm |
|
-2.5 |
|
2.5 |
dB |
Between -25dBm to +8dBm |
|
|
-3 |
|
3 |
dB |
Between -33dBm to -25dBm |
|
|
-3.5 |
|
3.5 |
dB |
Between +8dBm to +15dBm |
|
|
Optical return loss |
|
|
24 |
dB |
. |
|
Receiver damage threshold |
|
|
13 |
dBm |
|
|
Latency |
|
11 |
|
μs |
100G-OFEC |
|
|
7 |
|
μs |
200G-OFEC |
|
|
|
6 |
|
μs |
300G-OFEC |
|
|
|
5 |
|
μs |
400G-OFEC |
|
