Product Specifications
Compatible Part Number |

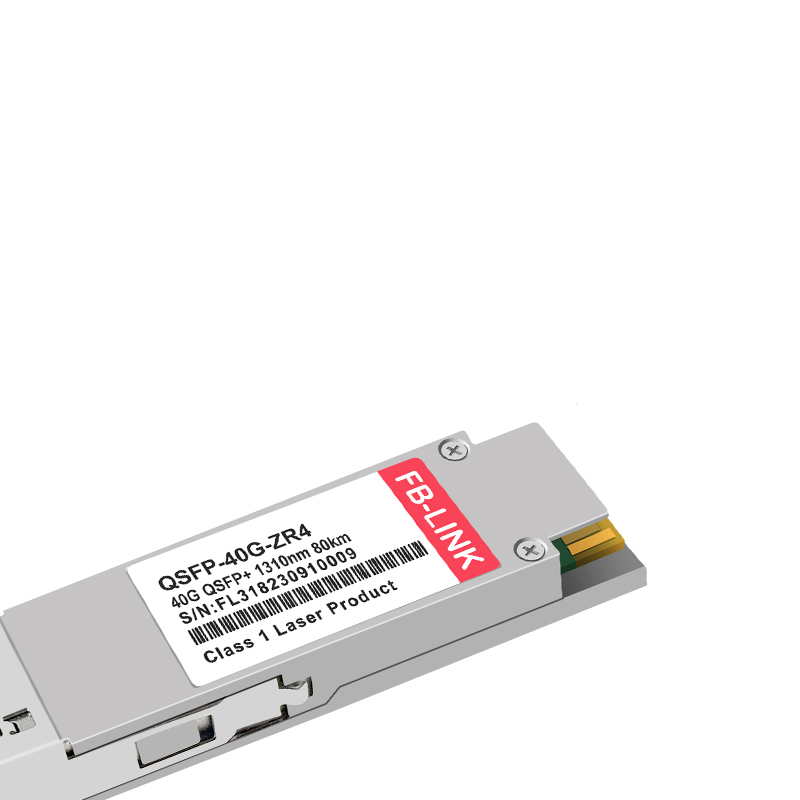

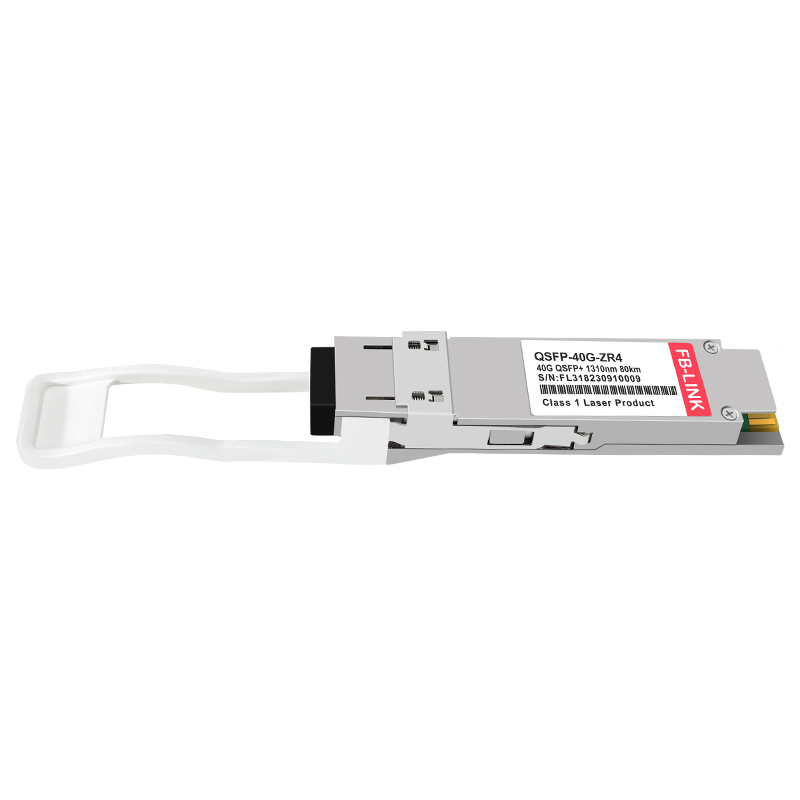

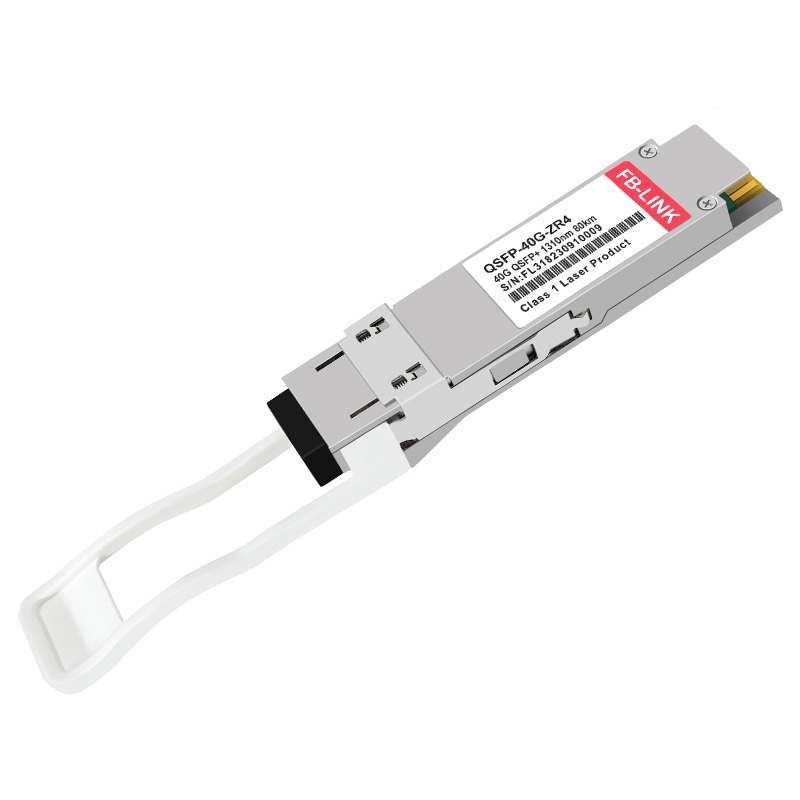

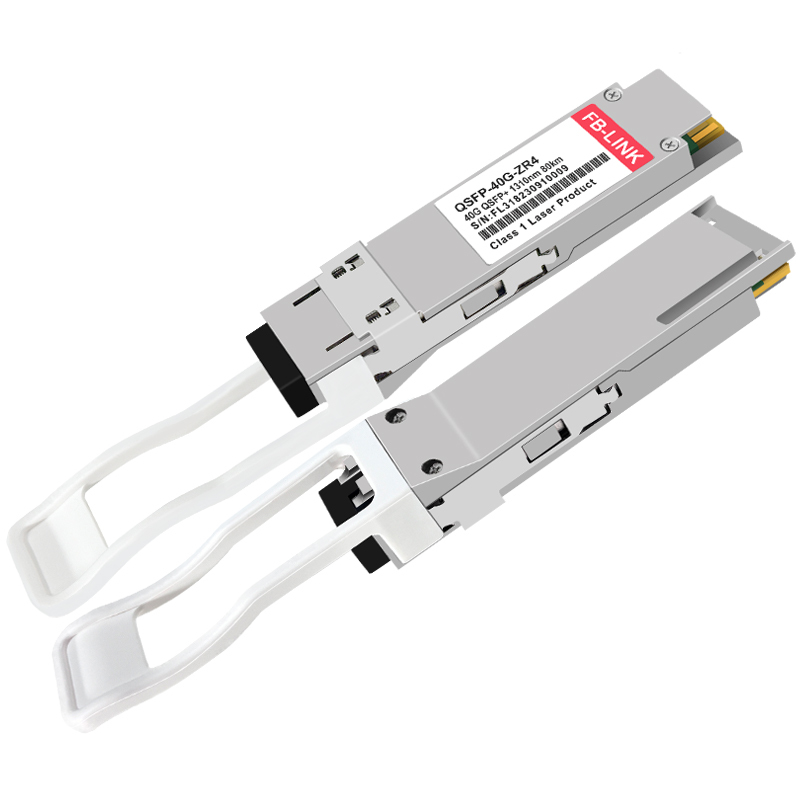

QSFP-40G-ZR4 |
Brand |
FB-LINK |
Form Factor |
QSFP+ |
Data Rate |
40Gb/s |
Wavelength |
LWDM |
Max Transmission Reach |
40km |
Connector |
Duplex LC |
Fiber Type |
Single Mode |
Extinction Ratio |
> 8.2 dB |
Transmit Optical Power |
0 ~ 6 dBm |
Receiver Sensitivity |
< -28.0 dBm |
Power Consumption |
≤ 4.5W |
Digital Diagnostic Monitoring (DDM) |
Supported |
Receiver Type |
PIN |
Operating Temperature |
0 ~ 70°C |
Features
◆ 4-lane MUX/DEMUX design
◆Integrated LAN WDM TOSA/ROSA
◆ Bandwidth up to 11.2 Gbps per channel
◆Total bandwidth > 40 Gbps
◆Duplex LC connector
◆ Compliant with 40G Ethernet IEEE 802.3ba and 40GBASE-ZR4
◆ MSA-compliant QSFP
◆ APD photodetector
◆Transmission distance up to 80 km
◆Compliant with QDR/DDR InfiniBand data rates
◆Single +3.3 V power supply operation
◆ Built-in digital diagnostics
◆ Temperature range: 0°C to 70°C
◆RoHS-compliant components
