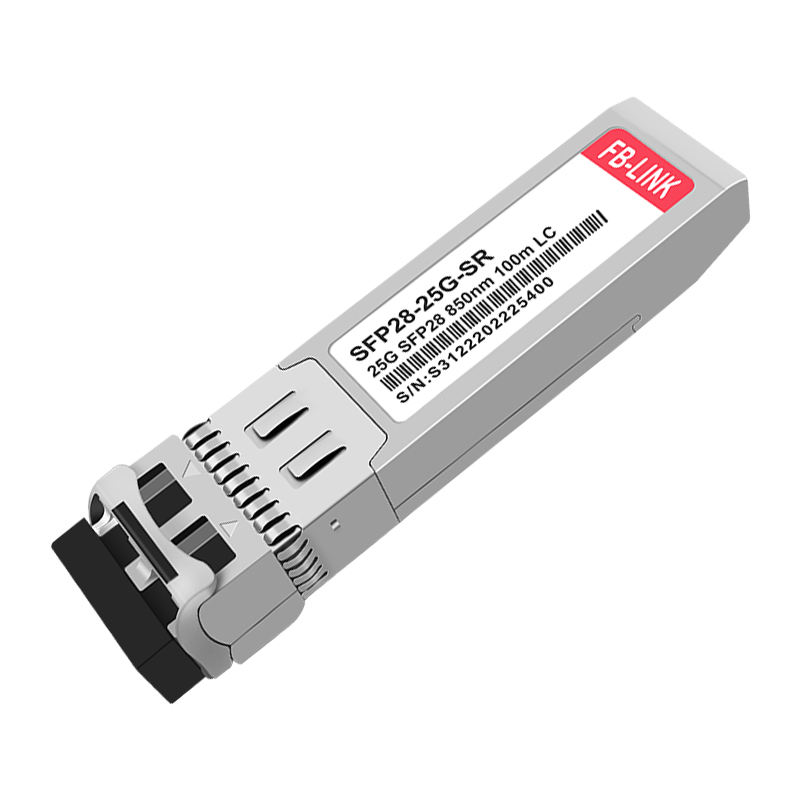

Compatible Part Number |
SFP28-25G-SR |
Brand |
FB-LINK |
Form Factor |
SFP28 |
Data Rate |
25Gb/s |
Wavelength |
850nm |
Max Transmission Reach |
100m |
Connector |
Duplex LC |
Receiver Type |
PIN |
Extinction Ratio |
> 2 dB |
Transmit Optical Power |
-8.4 ~ 2.4 dBm |
Receiver Sensitivity |
< -6 dBm |
Power Consumption |
≤ 1W |
Digital Diagnostic Monitoring (DDM) |
Supported |
Network Type |
Ethernet |
Operating Temperature |
0 ~ 70°C |
Features
◆Built-in Macom chip with a maximum power consumption of 1 W
◆ Tested in target switches to ensure exceptional performance, quality, and reliability
◆Compliant with IEEE 802.3by and IEEE 802.3cc for high-speed connectivity
◆ Commercial-grade housing with an operating temperature range of 0 °C to 70 °C
◆Maximum link length of 100 m over multimode fiber (MMF)
◆Supports 4x25G fan-out and easy migration to 100G platforms
◆ Hot-swappable and SFP28 MSA-compliant
◆ Digital optical monitoring with robust diagnostic capabilities
◆Class 1 FDA laser safety and RoHS compliance
